PRIME JOINT 10NA40-5D


Conecto Dowel is a leading armoured joint system, renowned for its strength, versatility, and reliability. Engineered for heavy-duty performance, it provides exceptional protection and easy installation, making it ideal for large-scale construction. The prefabricated, leave in place design ensures durable free-movement joints, offering long-term stability for ground and pile-supported concrete floors. With its armouring and load transfer capabilities, it delivers superior durability in high-traffic environments.

Places of application:

  • Industrail floors
  • Logistic and distribution centers
  • Industrail buildings
  • Industrial storage facilities

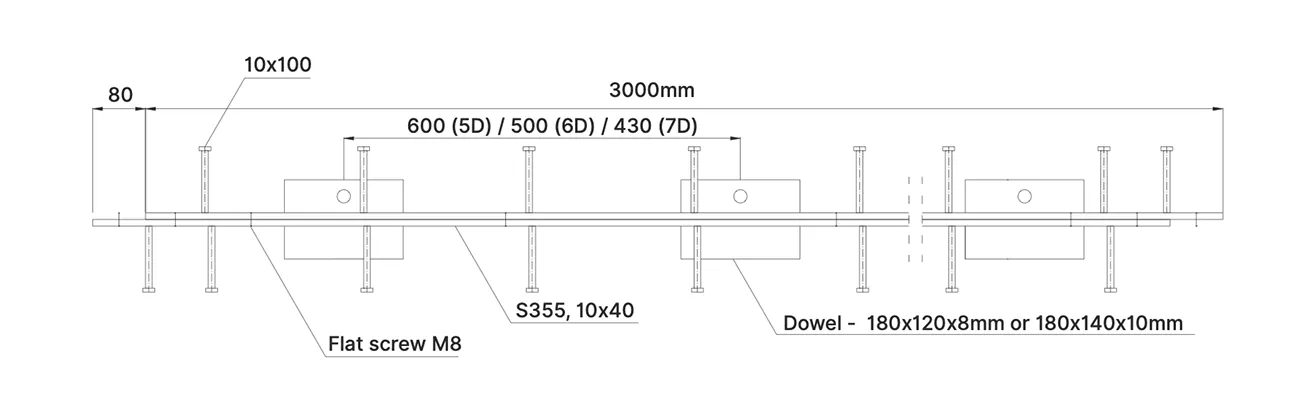

  • Possibility to use flat bars size 6x40mm or 8x40mm
  • Possibility to prepare top bars made of galvanized steel or stainless steel
  • Possibility to use foam 5mm or 10mm in whole height
  • Very big surface of steel dowel standard size 180x120x8, possibility to use dowels - 180x140x10
  • Standard space between dowels 600mm (5D)
  • Possibility to use more dowels per one joint (6D, 7D) to increase max loads on floor
  • Standard grade steel S355
  • Plastic cover made of highly resistant ABS plastic


conecto

With our experience and personalised approach, we deliver solutions tailored to the most demanding projects. Our goal is to provide products that meet the highest standards of quality and reliability.
